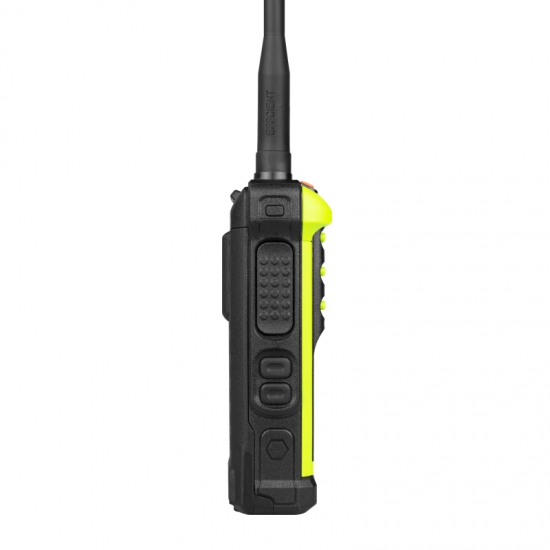

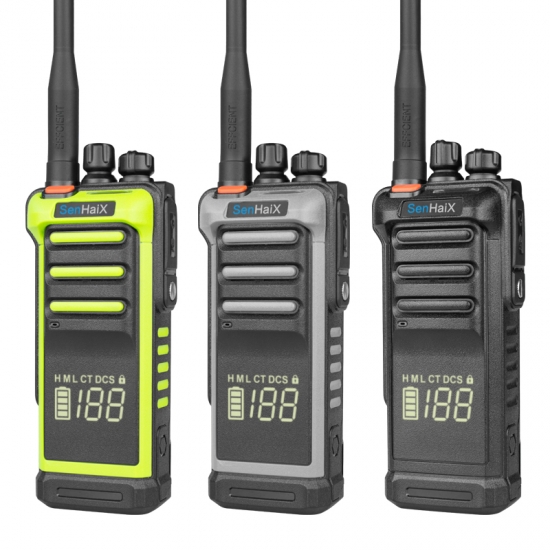

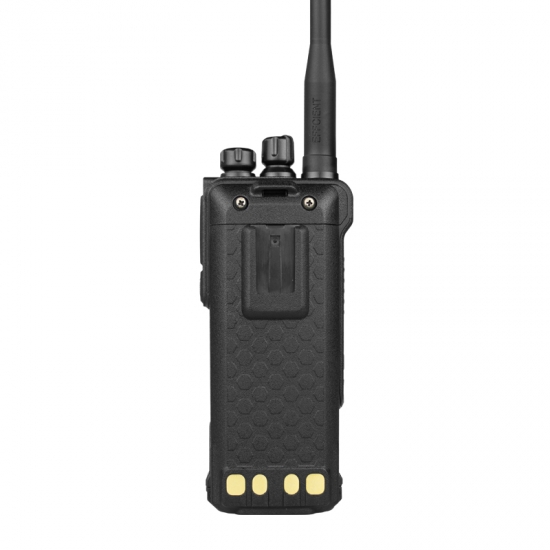

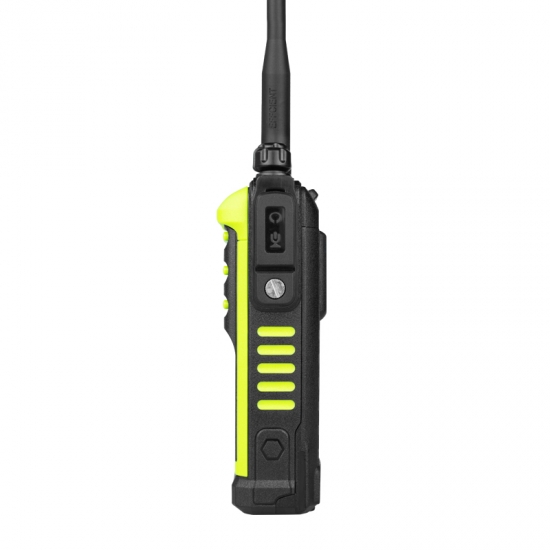

Product name: 10W 400-470 UHF DMR and Analog Radio with Hidden Display
- Hidden display
- 10W output
- 400-470 UHF
- Big battery capacity
- Encryption
- Record function
| General | |||
| Dimension | 140x65x45mm （Without Antenna） | ||
| Weight | 360g （Includ Battery） | ||
| Operating Voltage | 7.4V DC | ||
| Operating Temperature | -20℃~+40℃ | ||
| Antenna Impedance | 50Ω | ||
| Transmitter | |||
| Analog | Digital | ||
| Frequency Range | 400-470MHz | 400-470MHz | |
| Channel Capacity | 16 | 16 | |
| Output Power | 10W（High）5W（Low） | 10W（High）5W（Low） | |
| Frequency Stability | ±1ppm | ±1ppm | |
| FM Modulation | 12.5KHz(11K0F3E) 25KHz(16K0F3) | ||
| 4FSK Digital Modulation |
12.5KHz(DATA) 12.5KHz(DATA+VOICE) |
7K60FXD 7K60FXE |
|
| Adjacent Channel Power | ≤-60db | ≤-60db | |
| Digital Vocoder Type | AMBE+2TM | ||
| Digital Agreenment | ETSI-TS102 361-1,-2,-3 | ||
| Audio Response | +1, -3db | +1, -3db | |
| Audio Distortion | ≤5% | ≤5% | |
| Stray Radiation | -36dbm | -36dbm | |
| Receiver | |||
| Analog | Digital | ||
| Receiving Sensitivity | 0.25uV 12dbSINAD | 0.25uV BER3% | |
| Adjacent Channel Selectivity | ≤60db | ≤60db | |
| Audio Response | +1, -3db | +1, -3db | |
| Audio Distortion | ≤5% | ≤5% | |
| Audio Output Power | 1W | 1W | |
| Intermodulation | ≤-60db | ≤-60db | |
